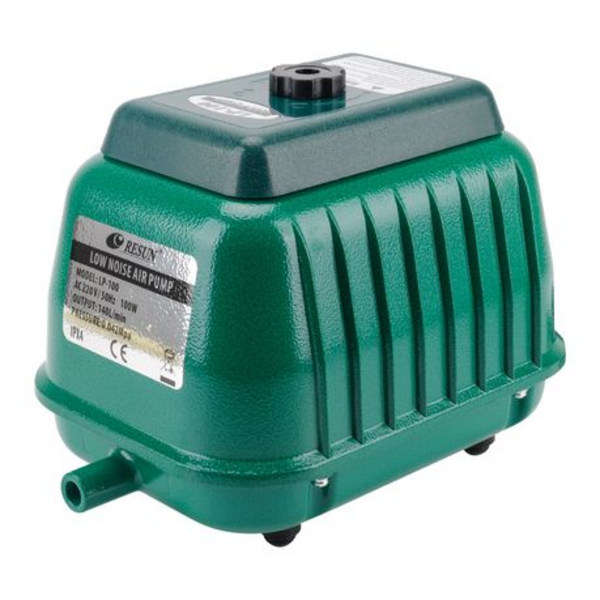

Resun LP-100 Air Pump (140 L/Min, 100Watt, 0.042 MPa) – Large Ponds, Quiet

The Resun LP-100 is a heavy-duty linear diaphragm air pump built for serious aeration jobs – large koi ponds, fish farms, septic systems and natural swimming ponds. It delivers a powerful 8,400 L/hr (140 L/min) of air output while running remarkably quietly thanks to its electromagnetic linear diaphragm technology.

Housed in a rugged cast aluminium body with automatic thermal cut-out overload protection, the LP-100 is engineered for continuous, long-term operation. It's IPX4 rated, so while it should be sited in a low-dust spot, it will tolerate rain and light sprinkling without issue – making it well suited to outdoor pond and aquaculture installations.

Versatile enough for everything from commercial aquaculture and waste-water treatment to natural swimming ponds and large koi setups, the LP-100 ships with a 33-outlet manifold to feed multiple air stones from a single unit.

Installation tip: To extend the life of the rubber diaphragms, the pump must have back pressure during operation. It should also be installed above the water level, or fitted with a check valve (e.g. Valterra) to prevent back-siphoning.

Key Features:

• Very quiet operation – electromagnetic linear diaphragm technology
• Maximum air output: 8,400 L/hr (140 L/min)
• Maximum pressure: 0.042 MPa / 0.42 bar / 420 mbar / 4.2 m H O
• Maximum water depth for air stones: 4.0 m
• Voltage / Wattage: 240V / 100W
• Cast aluminium body for durability
• Automatic thermal cut-out overload protection
• IPX4 rated – tolerates rain and light sprinkling
• Air pump outlet diameter: 20 mm
• Supplied with a 33-outlet 4mm ID manifold suitable for 4-8 mm silicon air line
• Cable length: 1.5 m
• Dimensions: 270 mm (L) × 200 mm (W) × 230 mm (H)
• Weight: 6.6 kg (pump) / 7.31 kg (cartoned)
• Must be installed above water level or fitted with a check valve

Ideal applications:

• Large fish and koi ponds
• Aquaculture and fish farm aeration
• Natural swimming pond aeration
• Waste water treatment aeration
• Deep-water septic tank aeration
• Commercial and industrial water aeration
• Bubble bath systems

What’s in the box
1 x Air pump with fittings
